Medical & Dental Clinic Permit Drawings
Clinic Permit Drawings in Toronto & the GTA

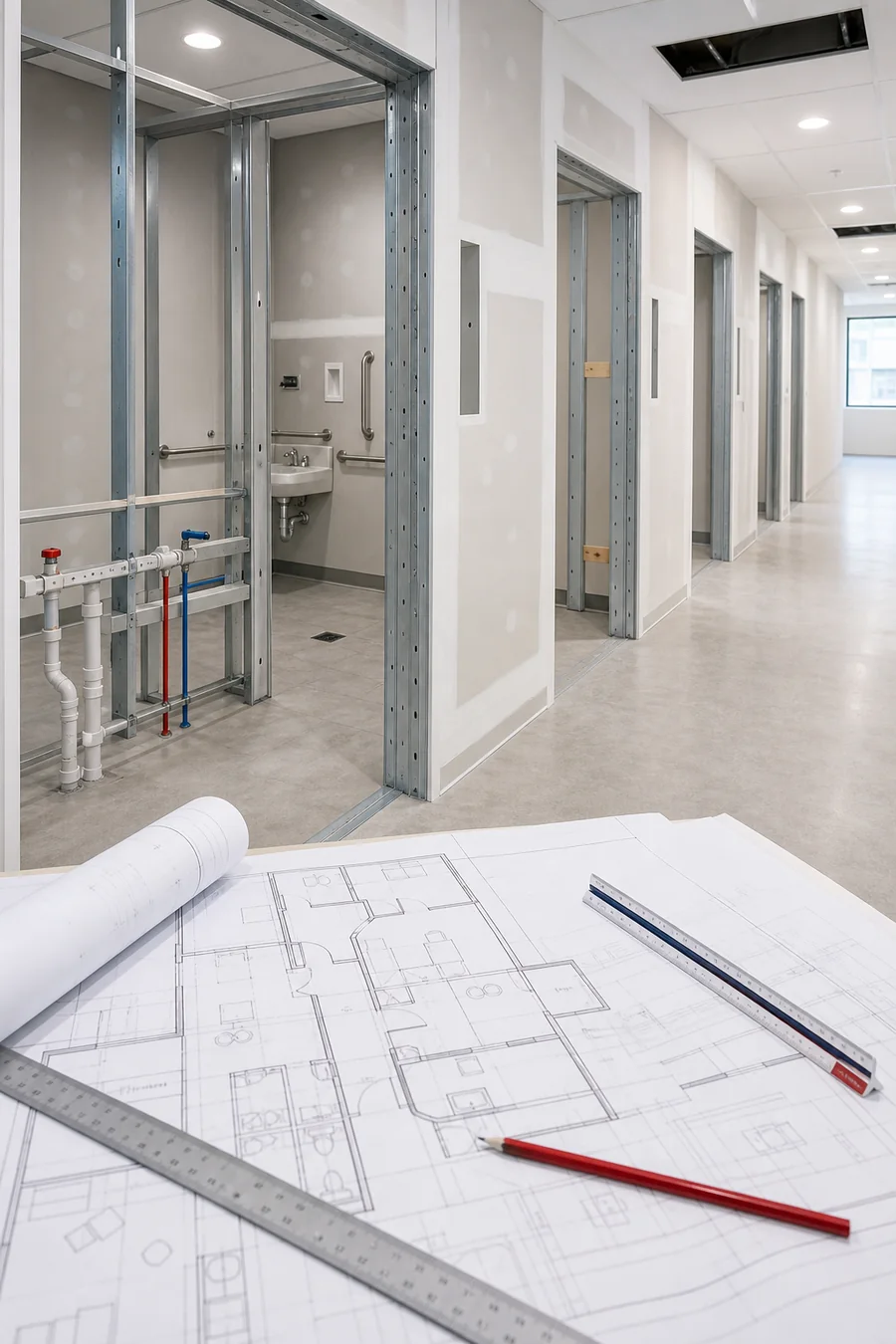

Clinic renovations can look simple on paper, but they often involve treatment rooms, plumbing fixtures, washrooms, accessibility, corridor widths, privacy layouts, ceiling/HVAC coordination and sometimes a change of use from office or retail.
Acadia Drafting prepares permit-ready clinic drawings for medical, dental, physio, wellness and personal-service businesses. We help organize the layout and code information so the municipality can review the project clearly.
☑Medical, dental, physio, wellness and personal-service clinic layouts.
☑Treatment rooms, reception, staff areas, storage and barrier-free washroom coordination.
☑Plumbing, ventilation, ceiling, electrical and consultant coordination when required.
☑Support for city comments, landlord comments and incomplete clinic permit packages.
Clinic Projects We Can Help With:
- New medical clinic or dental office in an existing commercial unit.
- Office-to-clinic or retail-to-clinic conversion requiring use/code review.
- Treatment room additions, revised reception layouts or staff area changes.
- Barrier-free washroom upgrades and accessible path-of-travel review.
- Dental, physio, chiro, massage, wellness, aesthetics or personal-service clinic build-outs.
- Clinic renovation drawings needed for landlord approval, permit submission or city comments.
What Your Clinic Drawing Package Includes
A clinic permit package should make the patient journey, staff workflow, room uses and code-sensitive details easy to review. It also needs to identify any building systems that are affected by the proposed renovation.
Depending on the project, Acadia can prepare or coordinate:
- Existing and proposed floor plans with reception, treatment rooms, offices, storage and staff areas.
- Room name/use notes, dimensions, door swings, millwork assumptions and circulation paths.
- Washroom layout and barrier-free accessibility coordination where required.
- Plumbing fixture locations for dental rooms, sinks, staff areas, sterilization or washrooms when applicable.
- Reflected ceiling, lighting, HVAC diffuser/exhaust coordination and consultant drawings where required.
- OBC/code summary notes for occupancy, exits, life safety and barrier-free design.
- Revision support for city examiner comments and landlord comments.
Clinic Review Items to Plan Early
Clinic projects can get delayed when room uses, accessibility, plumbing and base-building conditions are not clear. These are the items we recommend confirming before submission.
| Review Item | Why It Matters | What to Show in the Drawings |
|---|---|---|
| Existing and proposed use | Office, clinic, personal service and medical/dental uses can have different zoning or building-code implications. | Existing/proposed business-use notes, room functions and change-of-use coordination where required. |
| Treatment rooms and circulation | Patient rooms, staff access and corridors must be dimensioned clearly for review and construction. | Room names, room dimensions, door swings, corridor widths, reception and waiting layout. |
| Barrier-free path and washrooms | Most commercial renovations must review accessibility where public access or washroom changes are involved. | Door widths, turning space, washroom clearances, grab bar locations, signage and accessible route notes. |
| Plumbing fixtures | Dental, medical, wellness and staff areas may require new sinks, drains or fixture coordination. | Fixture locations, plumbing notes, rough-in assumptions and consultant coordination when required. |
| Ventilation and ceiling coordination | Treatment rooms and washrooms can affect ventilation, ceiling layout and trade coordination. | Reflected ceiling plan, diffuser/exhaust locations, mechanical notes and affected base-building systems. |
Toronto permit fee/source notes: For Toronto, 2026 non-residential interior alteration fees are listed as $12.45/m2 for Group A, B and D and $11.53/m2 for Group C, E and F. Toronto also lists all-other-building plumbing fixtures/equipment/roof drains at $30.94 each and HVAC alteration fees at $214.79 flat where applicable. Final classification and fees should be confirmed against the project scope.
Last reviewed: August 3, 2026
Official sources: City of Toronto – Interior Alterations (Non-Residential) | Ontario – Accessibility in Ontario’s Building Code | City of Toronto – Standalone Mechanical (HVAC) | City of Toronto – Building Permit Fees
Official Clinic Permit Sources
We include official source links near clinic permit details so business owners and contractors can verify the current city and building-code requirements.
| Source | What It Means for This Page |
|---|---|
| Toronto non-residential interior alteration guide | Commercial alteration drawings should show existing/proposed uses, plumbing fixtures, reflected ceiling details, wall assemblies and life-safety information. |
| Ontario accessibility in the Building Code | Most commercial buildings and extensive renovations must consider barrier-free paths of travel, door/corridor widths and public washroom accessibility. |
| Toronto standalone mechanical/HVAC guide | Ventilation and HVAC changes may require equipment information, duct design and ventilation calculations. |
| Toronto building permit fees | Fee calculations depend on the area of work, occupancy classification and additional mechanical/plumbing scope. |
Our Commercial Permit Process
Review the unit
We review the address, lease/unit information, existing drawings, proposed use and landlord requirements.
Confirm permit triggers
We flag layout, occupancy, accessibility, washroom, HVAC, plumbing, structural and fire/life-safety items that may affect review.
Prepare drawings
We build a permit-ready drawing set with the plans, notes, dimensions, schedules and consultant coordination required for the scope.
Support review
If the municipality issues comments, we help revise drawings and coordinate missing information so the application can keep moving.
Related Commercial Permit Services
Clinic projects often connect to change-of-use, washroom and tenant fit-out work.
- Commercial change of use permit drawings – for office or retail units becoming clinic or treatment spaces.
- Commercial tenant fit-out permit drawings – for full clinic build-outs in leased units.
- Commercial washroom permit drawings – for accessible washroom additions or upgrades.
- Office renovation permit drawings – for non-clinical office reconfigurations.
Frequently Asked Questions
These are the practical questions clinic owners and contractors usually ask before starting clinic permit drawings.
Often, yes. If the project changes layout, room use, plumbing, washrooms, accessibility, ventilation, exits or the approved use of the unit, permit drawings may be required before construction or occupancy.
It can be. A clinic may have different zoning, occupancy, plumbing, accessibility or life-safety implications than a standard office, so the existing approved use should be reviewed before the layout is finalized.
A typical package may include existing and proposed floor plans, room-use notes, reception and treatment room layouts, washroom/accessibility details, reflected ceiling or HVAC coordination, plumbing fixture locations and code notes.
Often, yes. Dental rooms, sterilization areas, sinks, equipment, suction/compressed air systems and ventilation can affect consultant coordination. The exact scope depends on the equipment and base building.
Many patient-facing commercial spaces must consider barrier-free access and accessible washrooms. Requirements depend on the building, existing conditions and renovation scope, so clear dimensions and accessibility notes should be reviewed early.
Yes. Send the city comment letter, submitted drawings and project address. We can review the comments, add missing code/layout information and coordinate consultant items where required.
Start Your Clinic Permit Drawings
Send us the address, existing layout, proposed clinic type, room list, equipment needs and any landlord or city comments. We will review the permit path and outline the drawings likely needed for submission.
